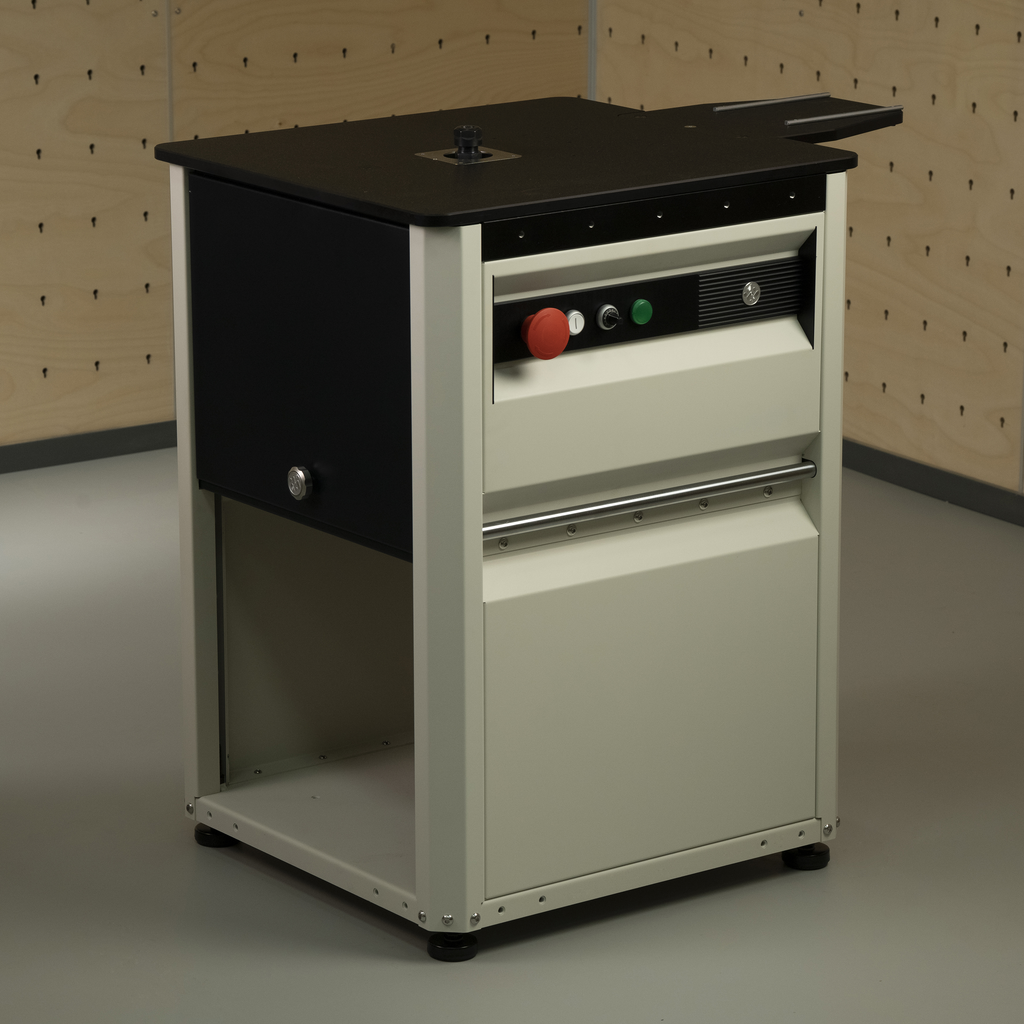

MRP-600 Modular Woodworking Routing Platform
MRP-600 Modular Woodworking Routing Platform

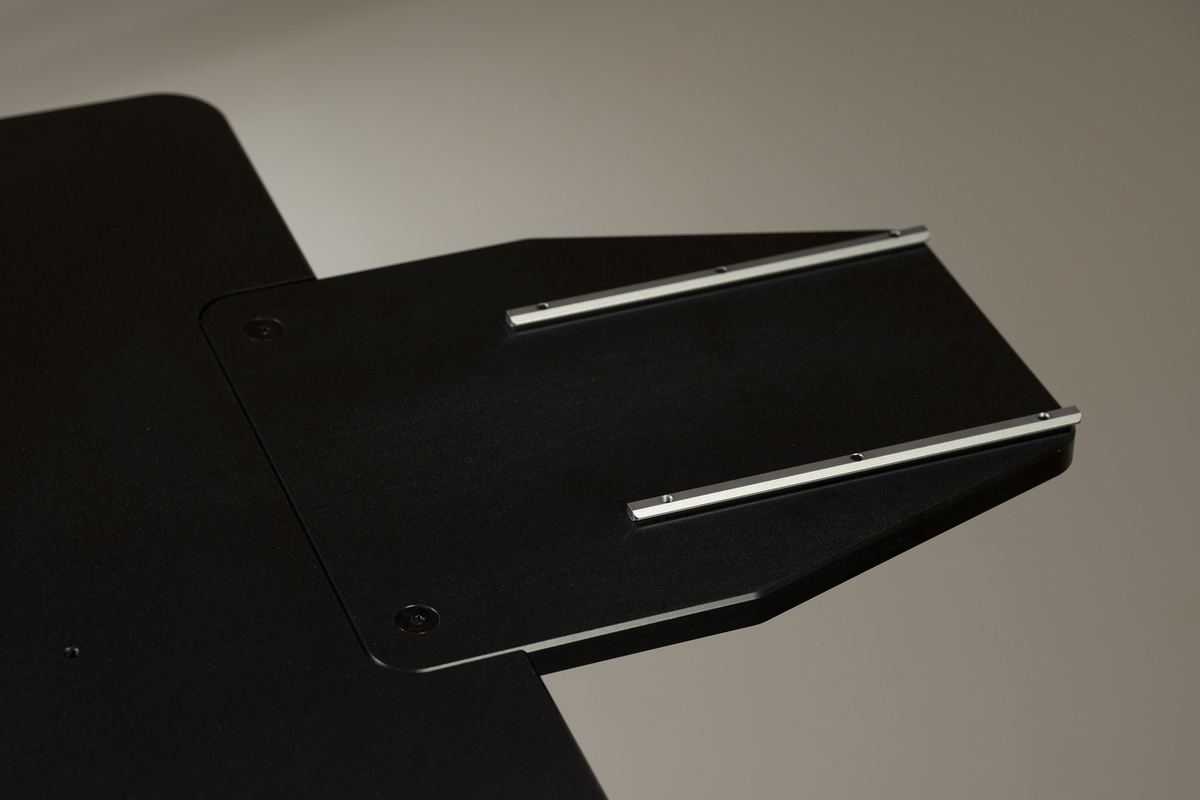

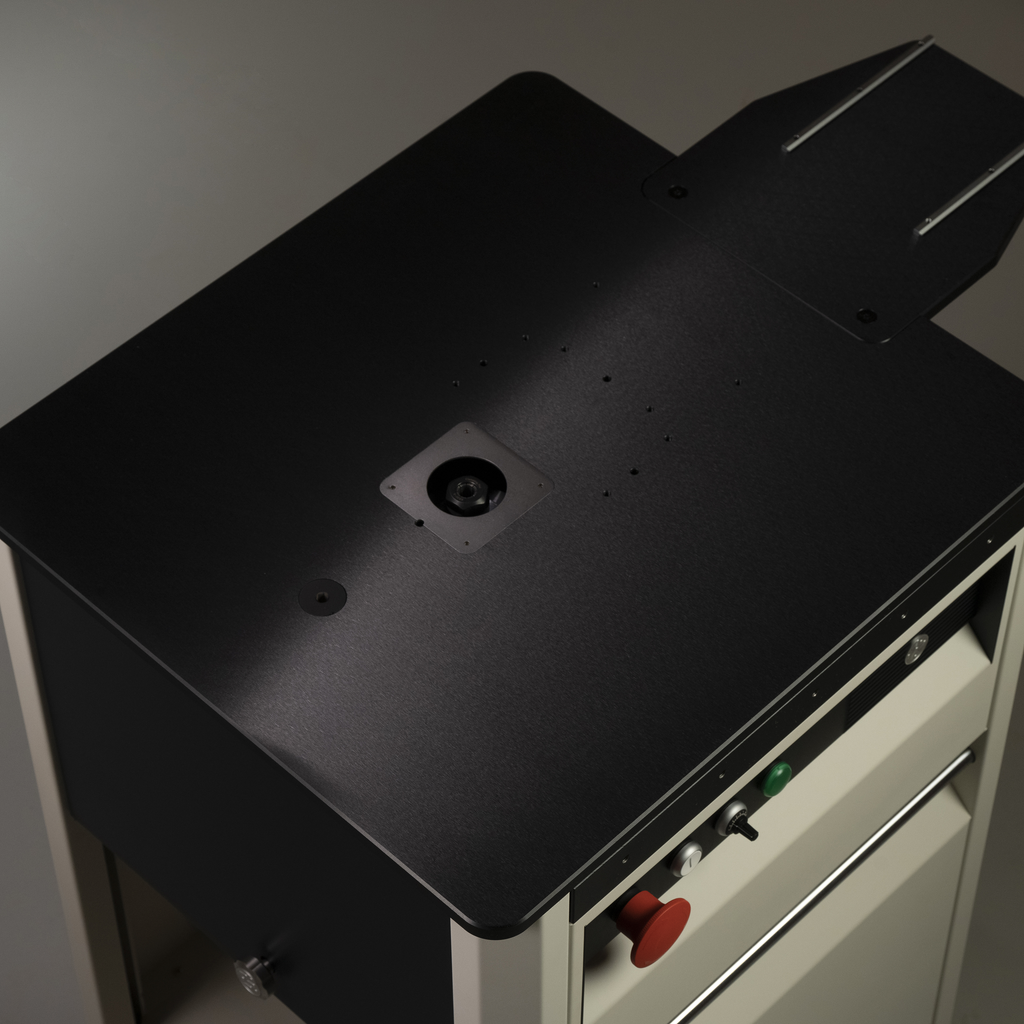

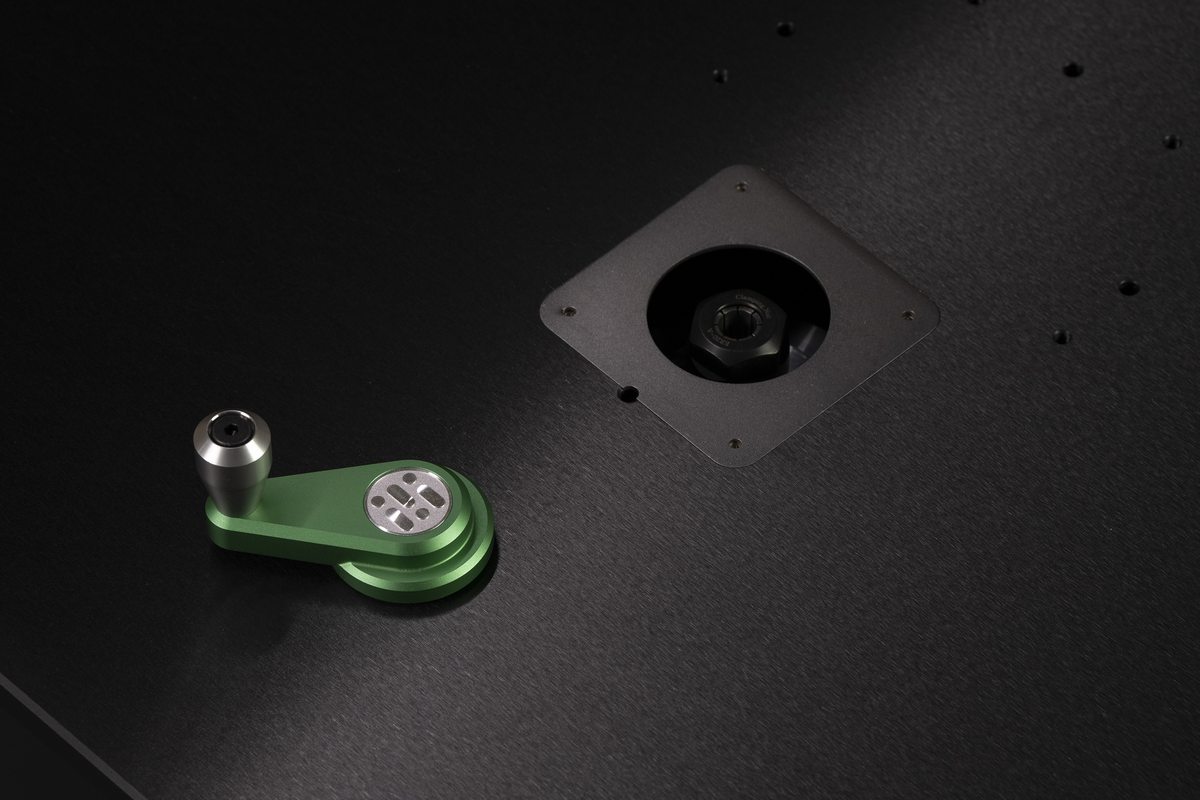

| Parameter | Specification |
|---|---|
| Worktable dimensions | 645 × 594 × 15 mm |
| Worktable material | 5083 aluminum alloy |
| Table flatness | ≤ 0.03 mm |
| Table leveling adjustment | 55 adjustable table-surface leveling points on the core frame |
| Spindle opening | Ø90 mm |

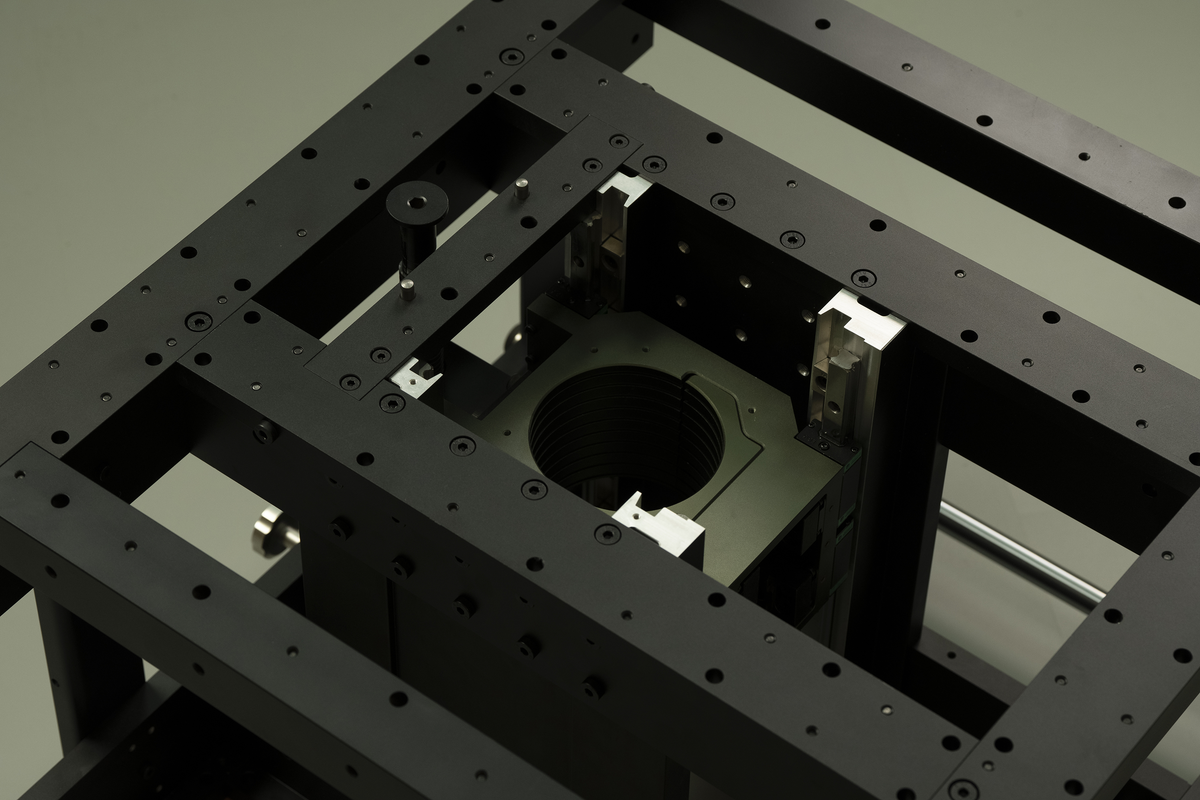

| Replaceable metal insert rings | Ø15 / 30 / 45 / 60 / 75 / 90 mm, with fine leveling adjustment |
| Overall dimensions | 645 × 620 × 860–900 mm |
| Height adjustment range | 860–900 mm, adjusted by leveling feet |
| Platform net weight | 150 kg |

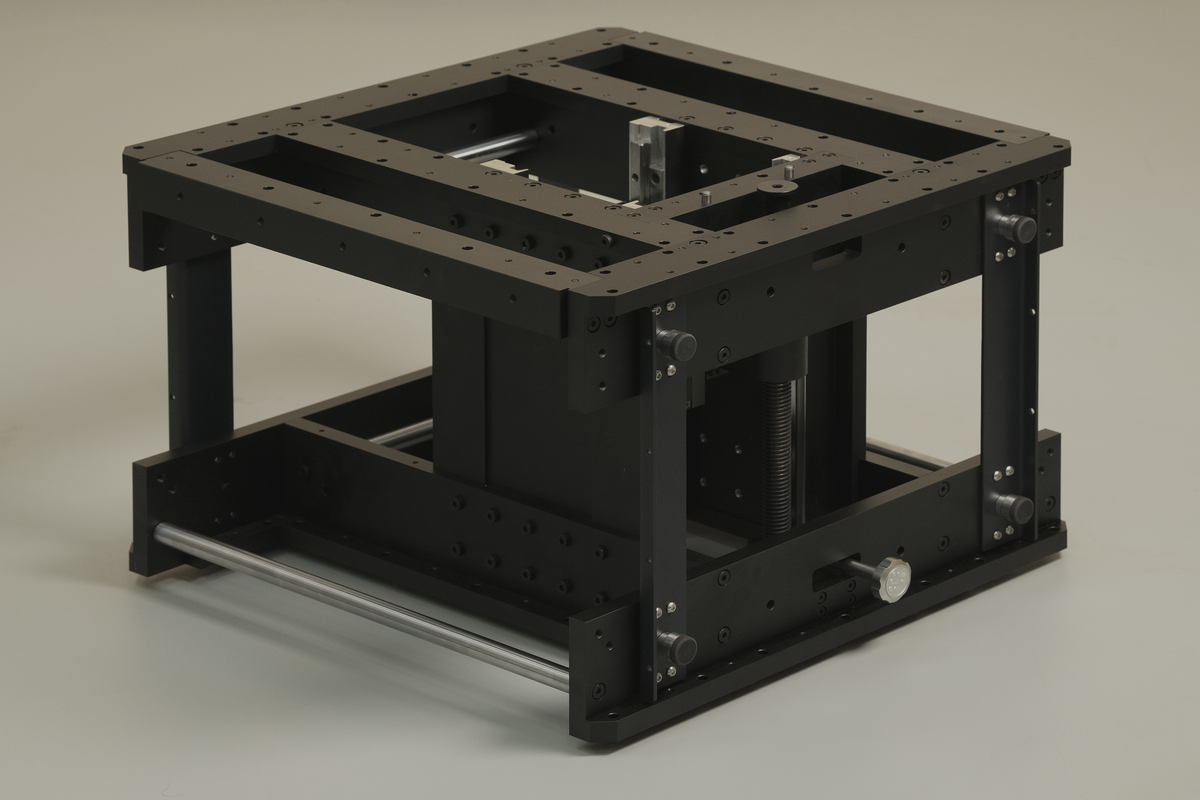

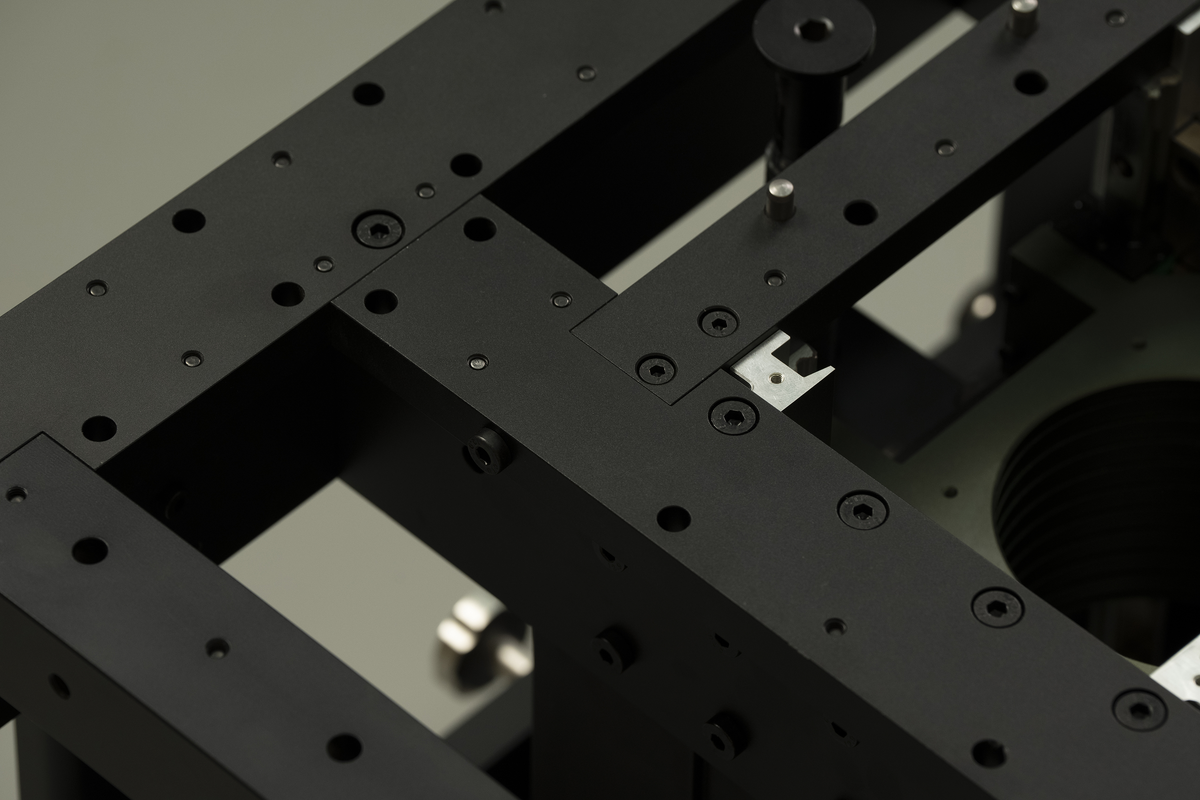

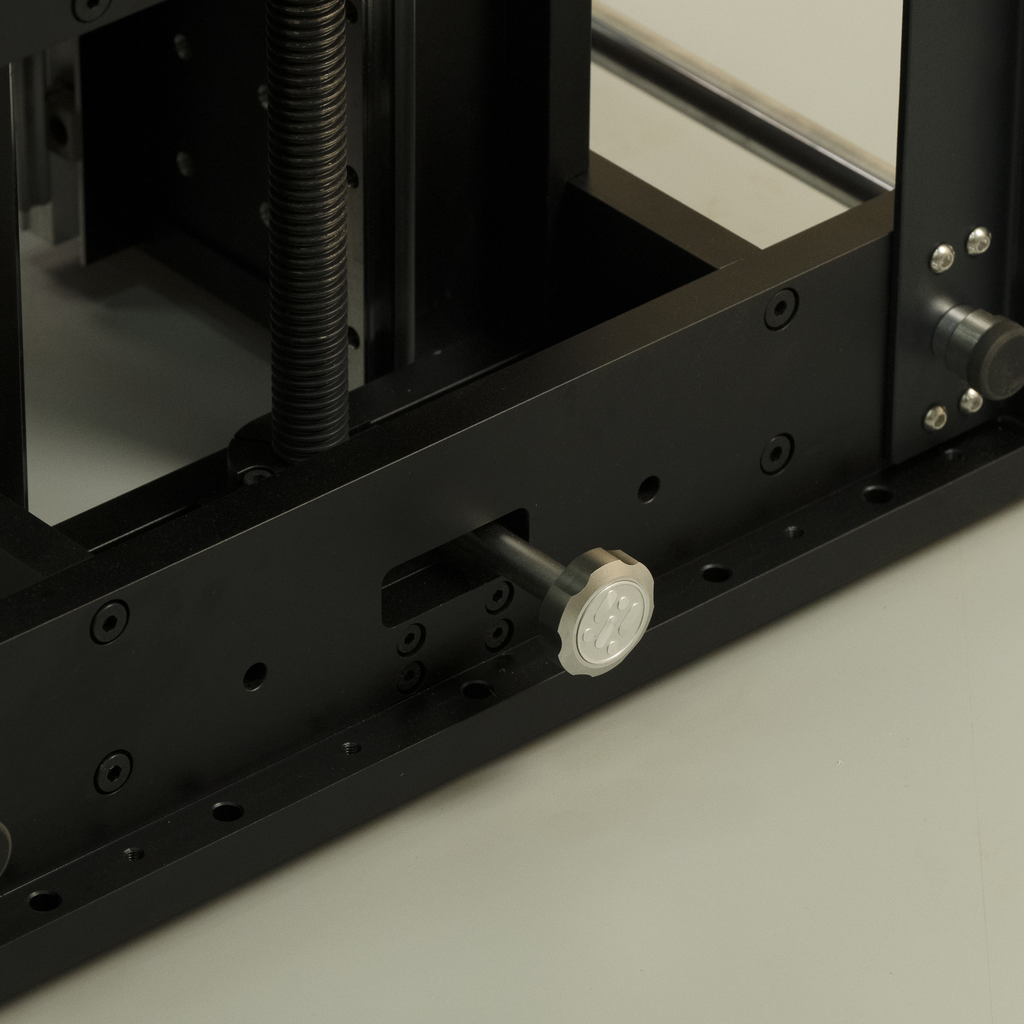

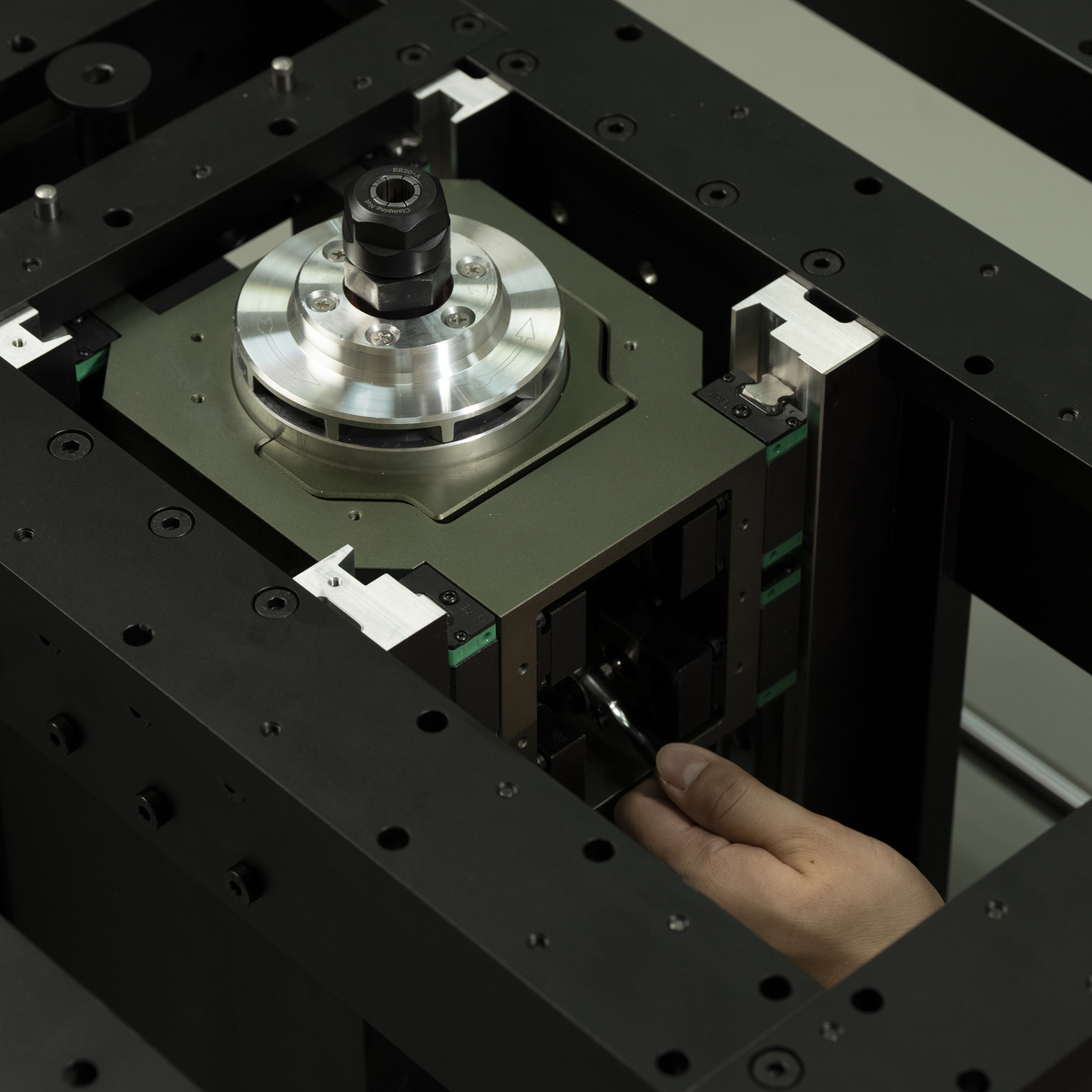

| Core frame | Primary load-bearing structure mainly in aluminum, with localized steel components |
| Front and rear outer panels | Magnetically attached carbon-steel sheet-metal panels with a spray-coated finish |
| Support arrangement | Leveling feet as standard; threaded mounting holes reserved for casters |
| Spindle center position | 270 mm from the front edge of the worktable; centered across the table width, 297 mm from either side edge |
| Height-adjustment travel | 100 mm |
| Height adjustment | 8 mm hex-key adjustment |

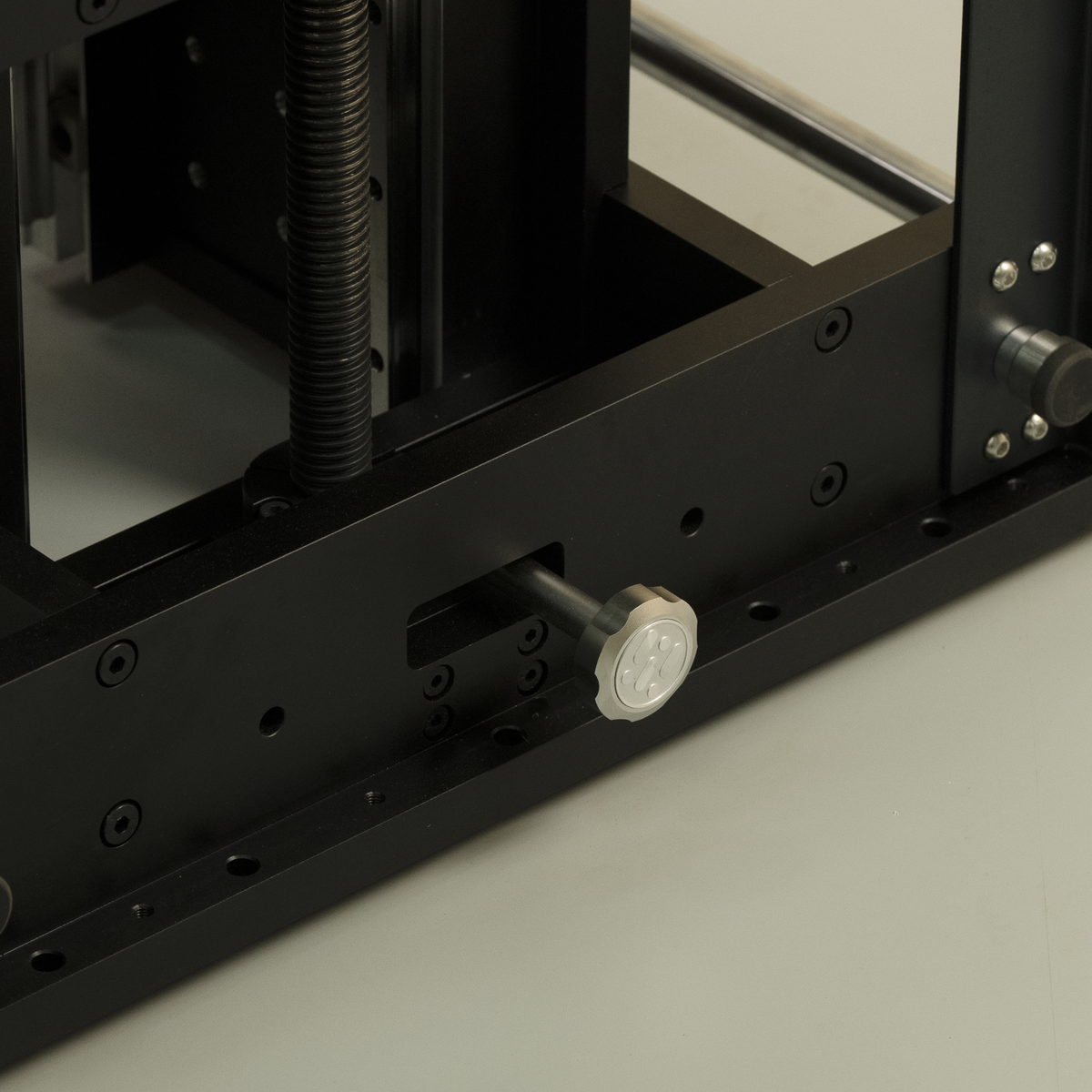

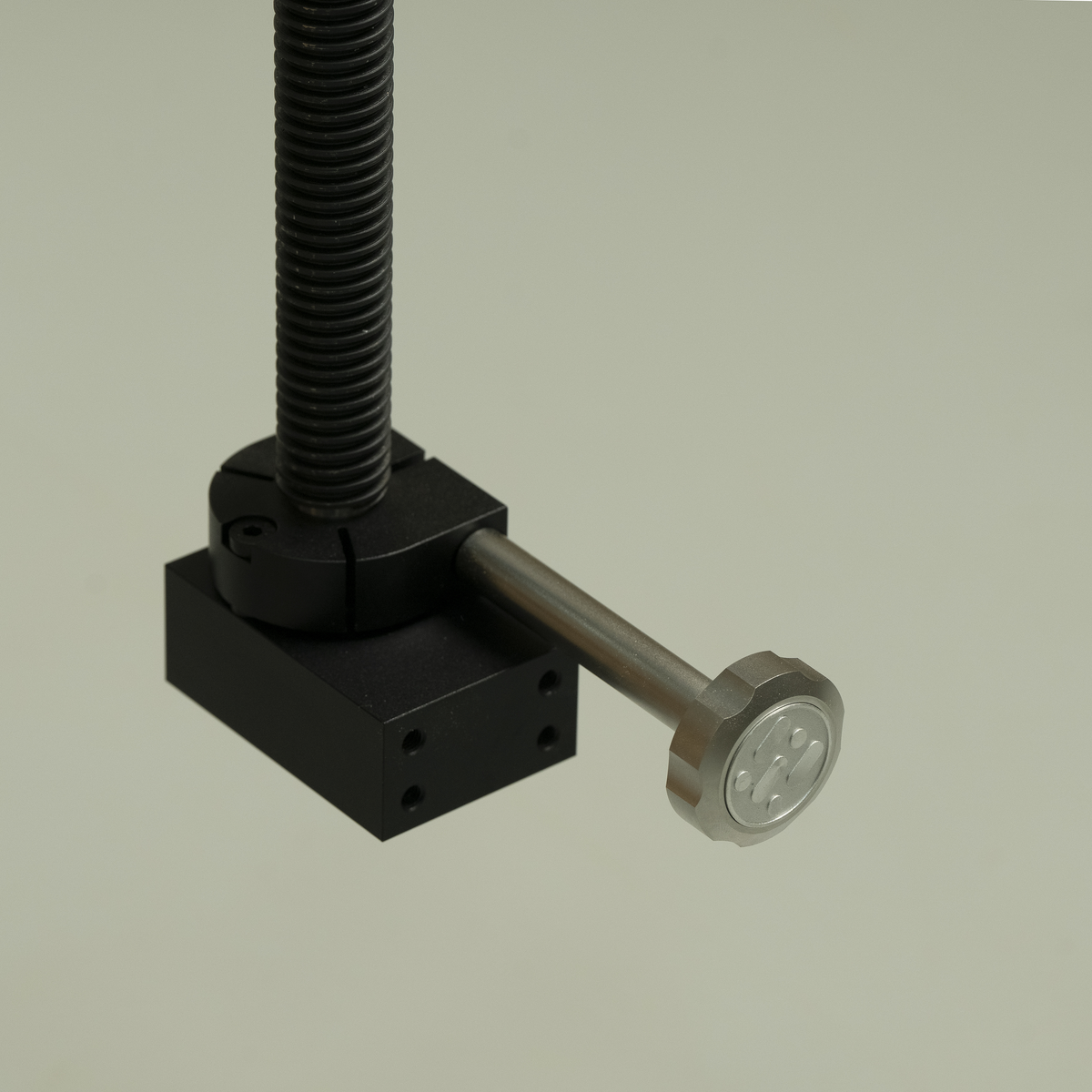

| Height-adjustment lock | Split-clamp lever locking mechanism |
| Main dust-extraction port | Ø100 mm, located at the lower side of the frame |
| Dust-extraction structure | Enclosed wraparound dust box |
| Dust extractor | A dust extractor is not included; the platform provides a dust-extraction connection only |
| External dust-extraction recommendation | Recommended external dust extractor airflow: not less than 1,000 m³/h |
Configuration Options
MRP-600 is currently available in two configuration paths. Both share the platform described above, while differing in their power units and control functions.
| Item | Configuration A | Configuration B |
|---|---|---|
| Model | MRP-600-I-VFD35-230 | MRP-600-C-MR-J107-230 |
| Configuration role | Integrated VFD spindle configuration | External power-unit adaptation configuration |
| Power unit | 3.5 kW VFD spindle system | Compatible with a customer-supplied router or specified spindle |
| Spindle/drive parameters | 400 Hz; speed-setting range: 0–24,000 r/min | J107 identifies the adaptation path for a JessEm 106.7 mm spindle; JessEm 05300 may be used as a reference |
| Tool interface | ER25 collet | Determined by the customer-selected external power unit |
| Power-unit supply | VFD spindle system included | Specified external power unit not included |
| Electrical version | 230 V | 230 V |
| Emergency stop | Included | Included |
| Power-on control | Included | Included |
| Speed adjustment | Included | Included |
| Power-on indicator | Included | Included |
| Forward/reverse two-position selection | Included | Not included |

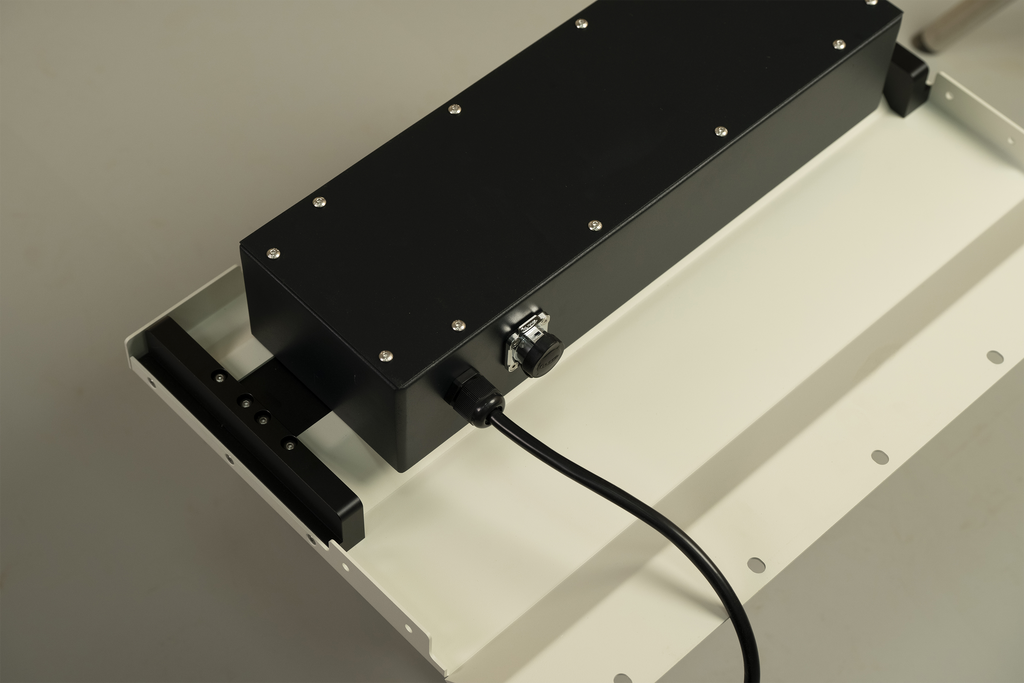

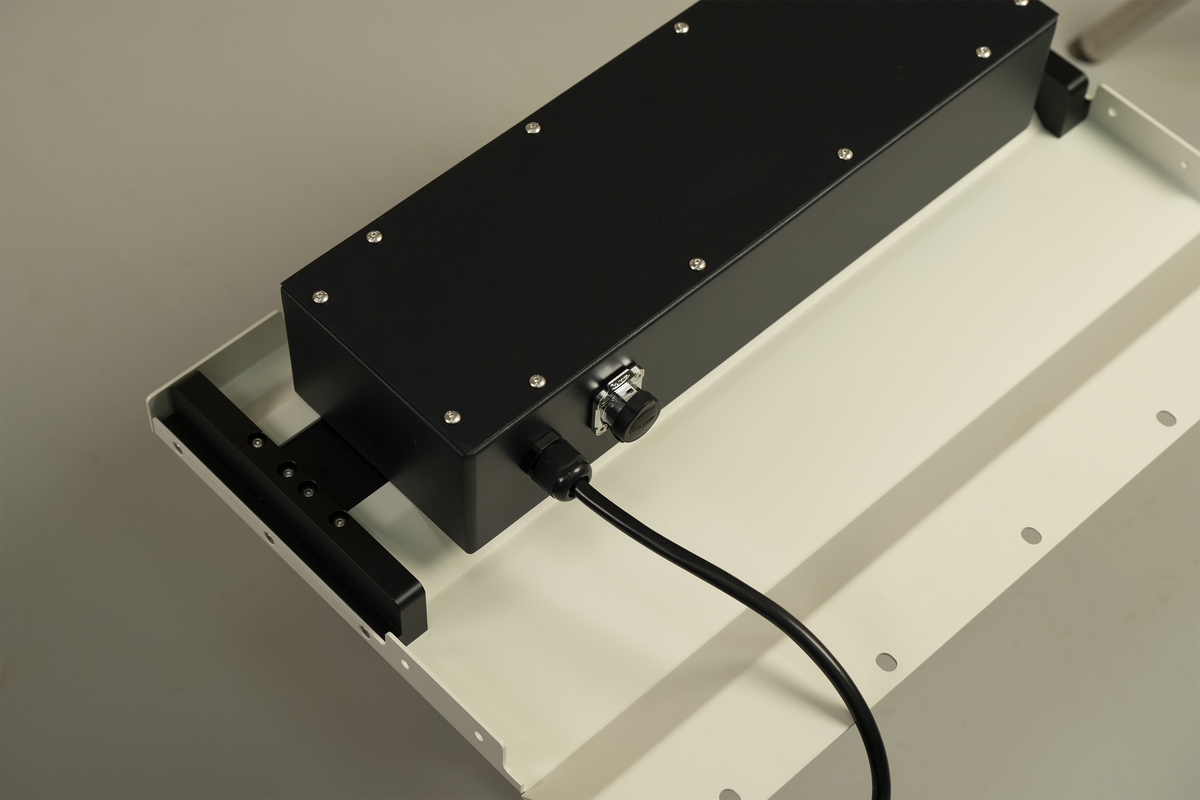

Configuration A Integrated VFD Spindle Solution
Model: MRP-600-I-VFD35-230

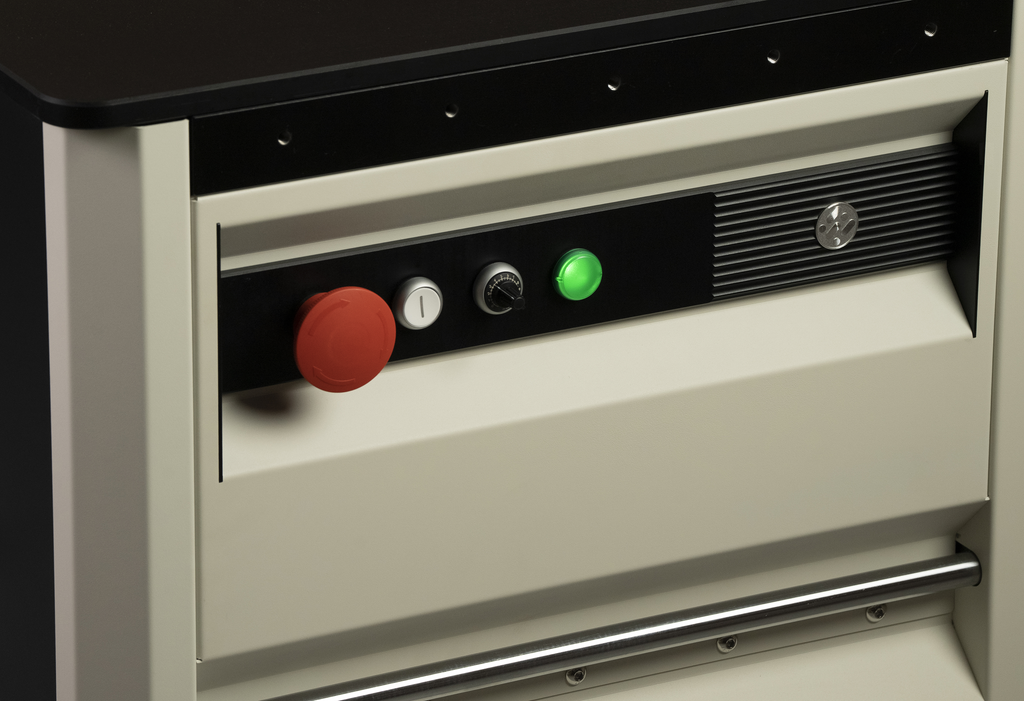

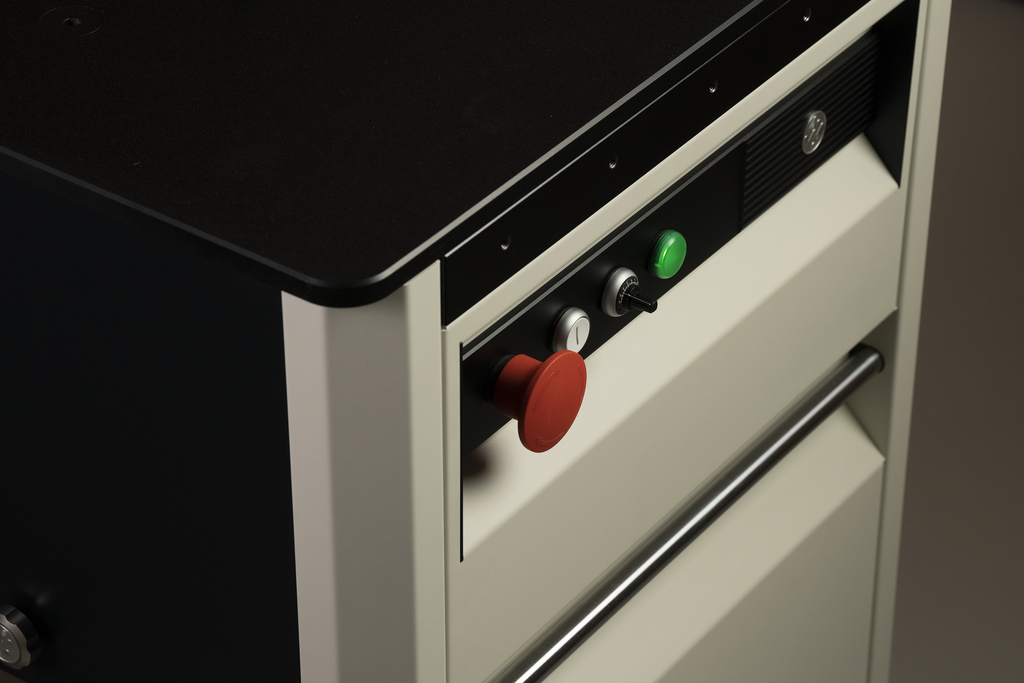

Configuration A uses a 3.5 kW VFD spindle system with a 400 Hz spindle/drive specification, a speed-setting range of 0–24,000 r/min, and an ER25 collet. Its front control panel provides an emergency stop, power-on control, speed adjustment, power-on indication, and forward/reverse two-position selection. It is intended for routing applications requiring an independent power and control system.
Configuration B External Power-Unit Adaptation Solution
Model: MRP-600-C-MR-J107-230
Configuration B is intended for users who already own a router or specified spindle. It is compatible with a customer-supplied external power unit. J107 identifies the adaptation path for a JessEm 106.7 mm spindle, with JessEm 05300 as a reference. The front control panel provides an emergency stop, power-on control, speed adjustment, and power-on indication. Configuration B does not include the VFD configuration's forward/reverse two-position selection or the specified external power unit.
